RAMPS 1.6 3D Printer Control Board for Arduino Upgraded Version
Original price was: ₹1,100.00.₹799.00Current price is: ₹799.00. (incl. GST)

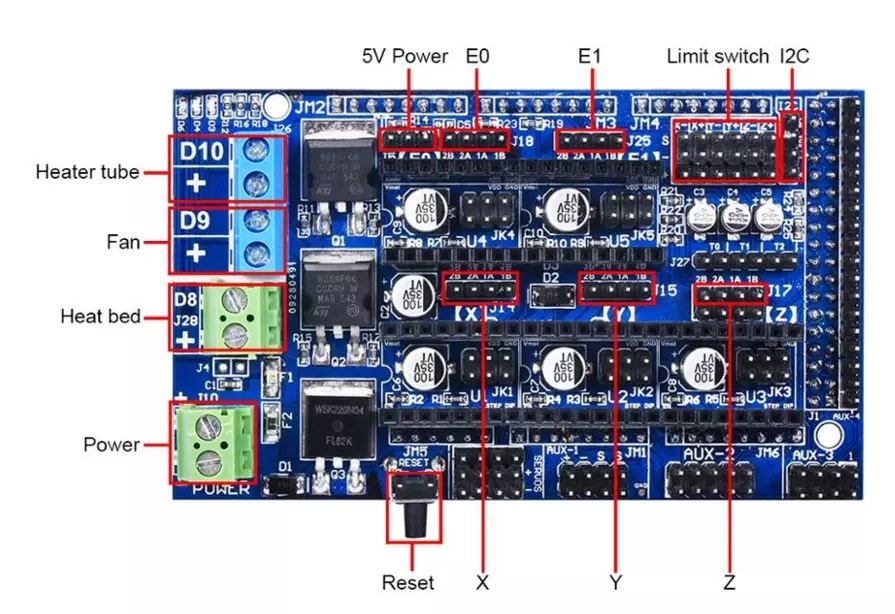

Specifications:
- The board can be connected to LCD and other parts.
- The board has heater and fan MOSFET outputs and 3 thermistor interfaces.
- The LED will light when the heater has output.
- Heated bed has additional 11A fuses.
- Two Z motor outputs available incase you want to connect to Prusa type printer.
- Has 5 stepper motor outputs.
- The pin socket are designed to be easily replaced or removed for future design.
- I2C and SPI pins are available for future expansion.
- These connectors are gold-plated and have a rated current of 3A, which is very compact.
- Support motor drivers: support A4988 and DRV8825
Let us know that you want the product. email notification on new stock arrival
- Description
- Additional information
- Reviews (0)
- Warranty
Description
Description
The RAMPS 1.6 is a 3D printer control board based on the Arduino platform. It’s an upgraded version of the previous RAMPS boards and is designed to control the most common functions of a 3D printer such as managing the heating system, controlling the movement of the axes, and managing the flow of the extruder’s filament.

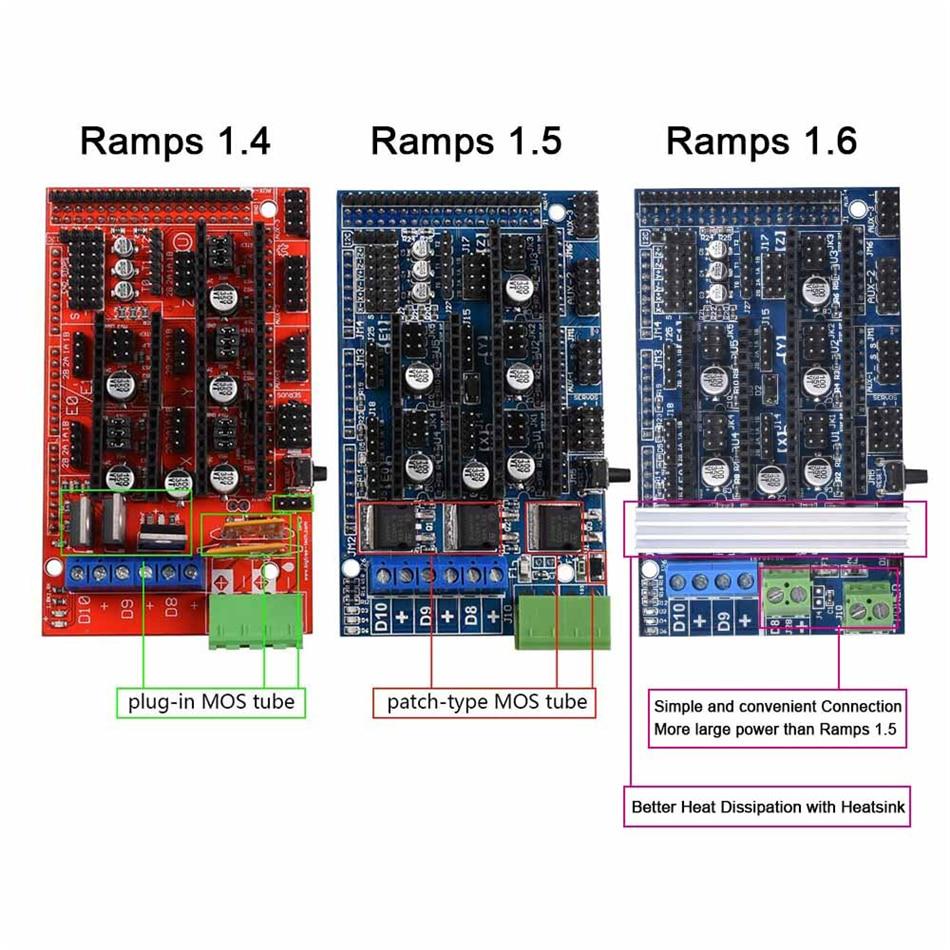

RAMPS 1.6 is optimized and launched based on RAMPS1.4 by BigTreeTech R&D team. They have changed the original plug-in MOS tube to patch-type MOS tube in order to solve the heating and melting problem of plug-in MOS tube, taking up a large area, poor heat dissipation, etc. This can improve the stability and aesthetics of the board. The multiple extended interface and replaceable parts make RAMPS 1.6 become a control board with powerful upgrade capability and scalable modularity. The controller board can be used as a HAT(Hardware Attachment on Top) for Aurdino Mega and on top connected to stepper motor drives.
Package Includes:
1 x RAMPS 1.6 3D Printer Control Board
Additional information
Additional information
| Weight | .1 kg |
|---|---|
| Dimensions | 10 × 10 × 5 cm |
| Country of Origin | China |
Reviews (0)
Be the first to review “RAMPS 1.6 3D Printer Control Board for Arduino Upgraded Version”
You must be logged in to post a review.
Warranty
This Product is Covered under Standard 7 day Return/Replacement warranty for manufacturing defects only
