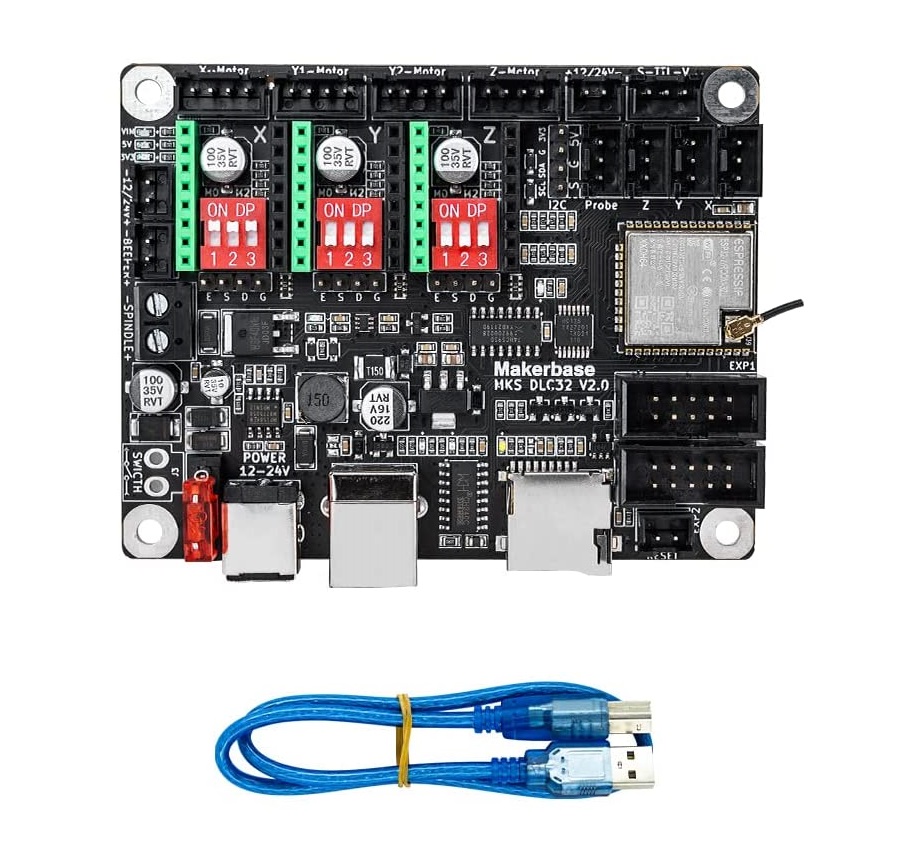

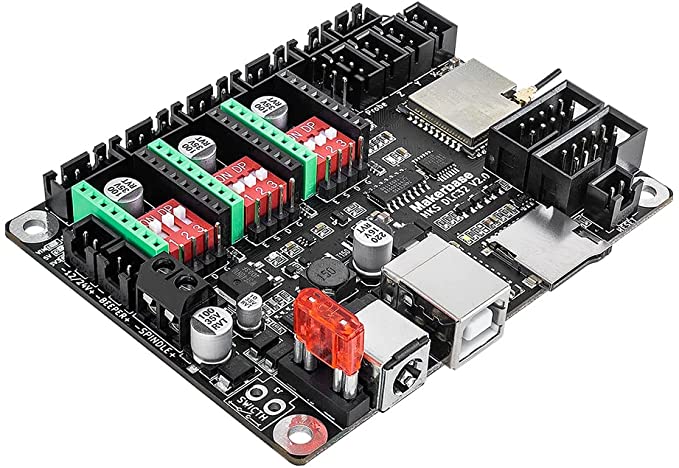

New Makerbase MKS DLC32 WIFI CNC Control Board
MKS DLC32 motherboard kit, which is an offline engraving master control kit developed for desktop engraving machines. The hardware is equipped with a 32-bit high-speed ESP32 module, integrated WIFI function, and directly drives a 3.5-inch touch color screen; it can realize fast engraving and WEB web pages. Control, mobile phone APP control and other functions.
The mounting holes and board size of MKS DLC32 are compatible with MKS DLC, and the it can also be used with the LaserGRBL and LightBurn PC software.
Check out the New Makerbase MKS Display Mini 12864 V3.0
Related tutorials and Notice
Product introduce video: https://www.youtube.com/watch?v=U_OzlMxwms8&t=6s
Basic usage for laser engraving machine: https://www.youtube.com/watch?v=MKRBYVbxJmw&t=139s
HARDWARE Wiring
For detailed wiring method, please refer to: https://github.com/makerbase-mks/MKS-DLC32/blob/main/doc/DLC32%20wiring%20manual.pdf
Compare between MKS DLC and MKS DLC32
| ITEMS |
MKS DLC |
MKS DLC32 |
| MCU |
ATMEGA328P ( 8bits) |
ESP32-WROOM-32U（ 32bits） |
| MCU Freq. |
20MHz |
240MHz |
| FLASH |
32KBytes |
8192KBytes |
| RAM |
32KBytes |
520KBytes |
| Power Input |
DC 12v/24v |
DC12v/24v |
| Laser Speed |
<=3000mm/min |
<=8000mm/min |
| PC engraving |
Support |
Support |
| Offline Mode |
Not Support |
Support |
| LCD |
Not Support |
Support，3.5 inch Touch TFT |
| WiFi On Board |
Not Support |
Support |
| Web Control |
Not Support |
Support |
| Mobile APP Control |
Not Support |
Support |
| LaserGRBL |
Support |
Support |
| LightBurn |
Support |
Support |
FIRMWARE
Refer to the wiki:https://github.com/makerbase-mks/MKS-DLC32/wiki/Firmware
Mobile App
Refer to the wiki:https://github.com/makerbase-mks/MKS-DLC32/wiki/Mobile-App
Wiki
https://github.com/makerbase-mks/MKS-DLC32/wiki
Package Includes:
1 x New Makerbase MKS DLC32 WIFI CNC Control Board
