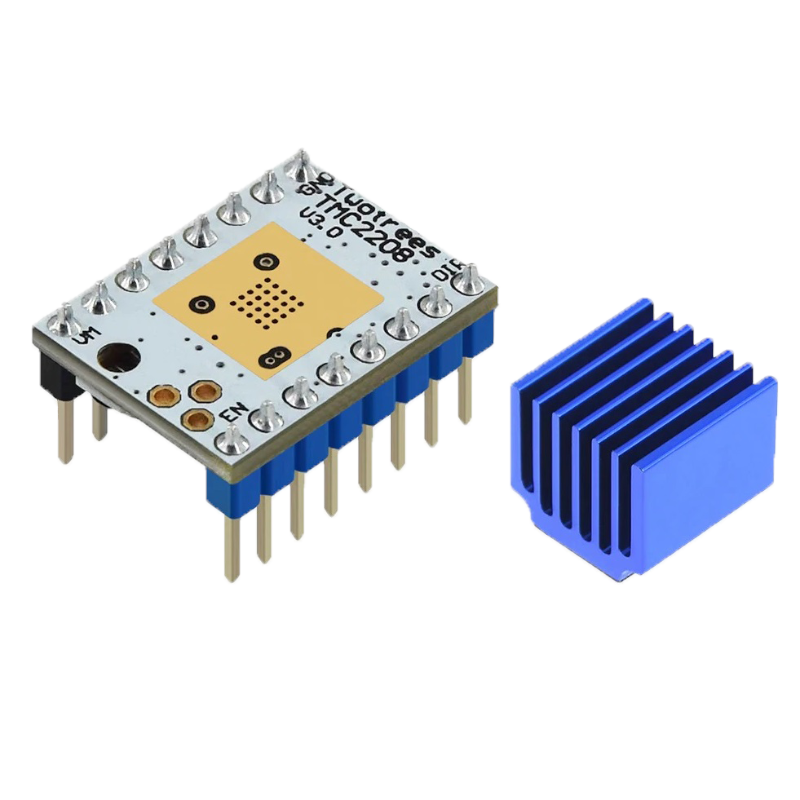

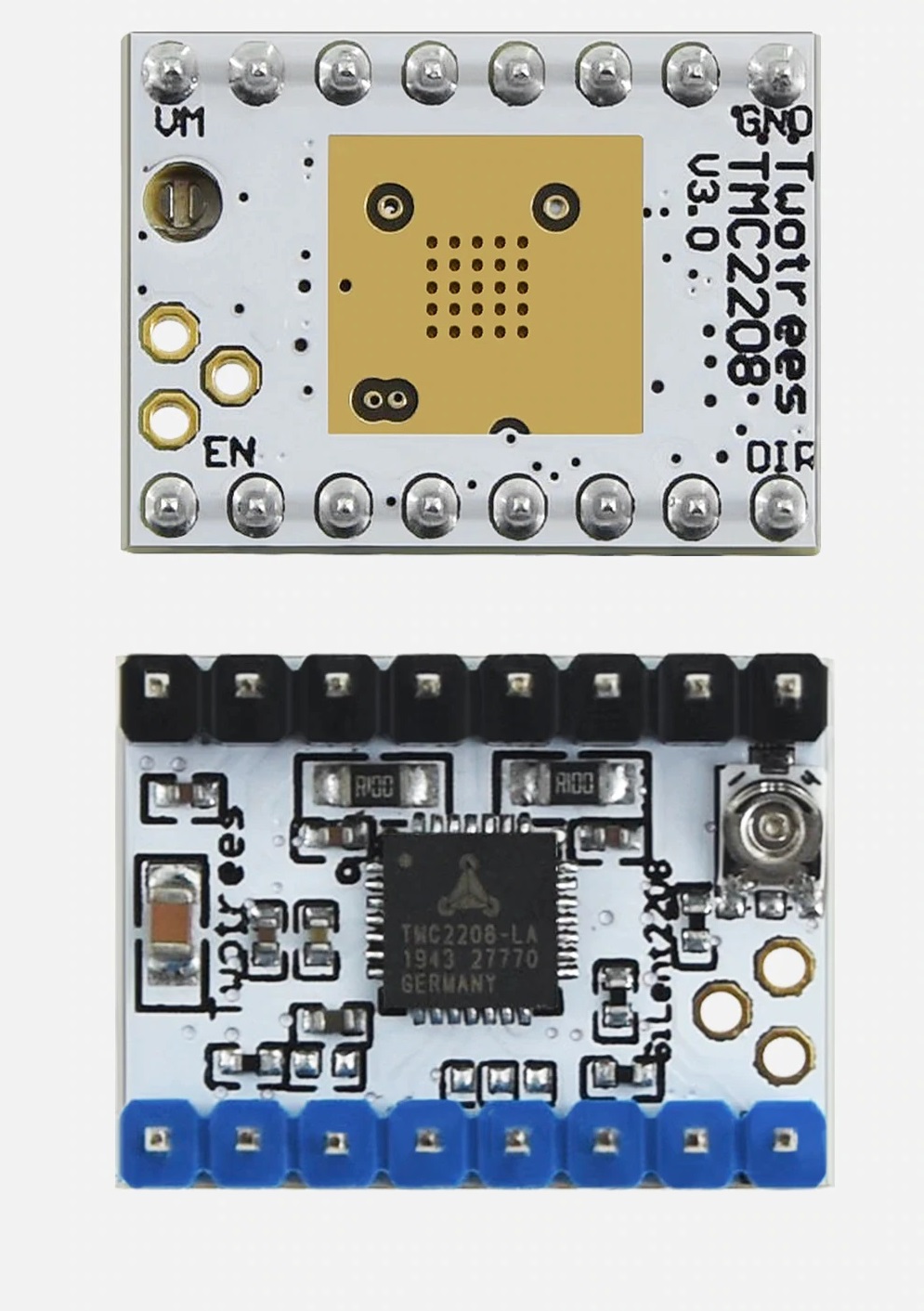

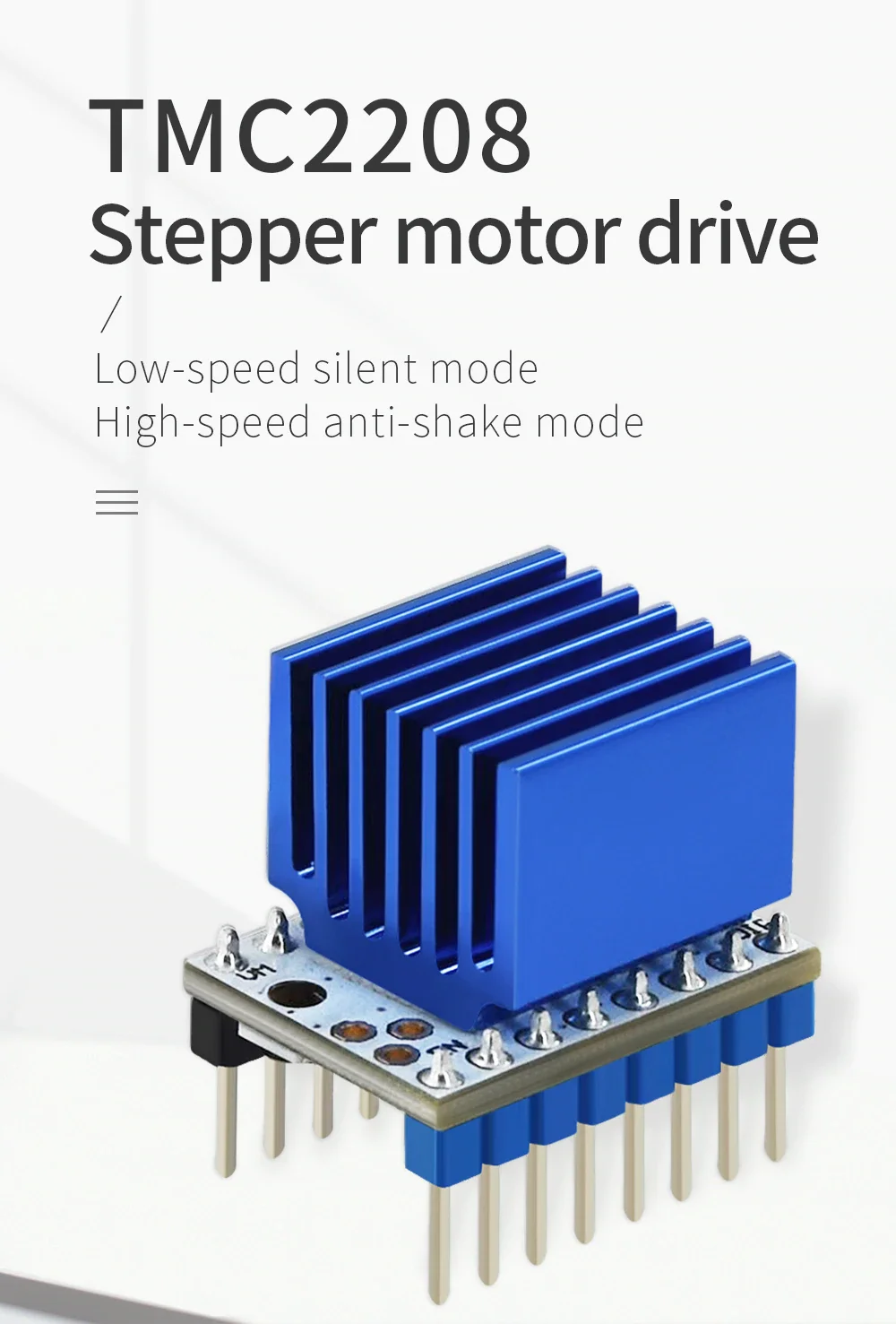

TMC2208 V3.0 Stepper Motor Driver Module with Heatsink

TMC2208 V3.0 drive is the easiest to use single axis stepper motor drive with peak current of 1.6A and voltage range of 5V-36V, 256 microstep subdivision, with patented stealthchop technology, with complete silent operation

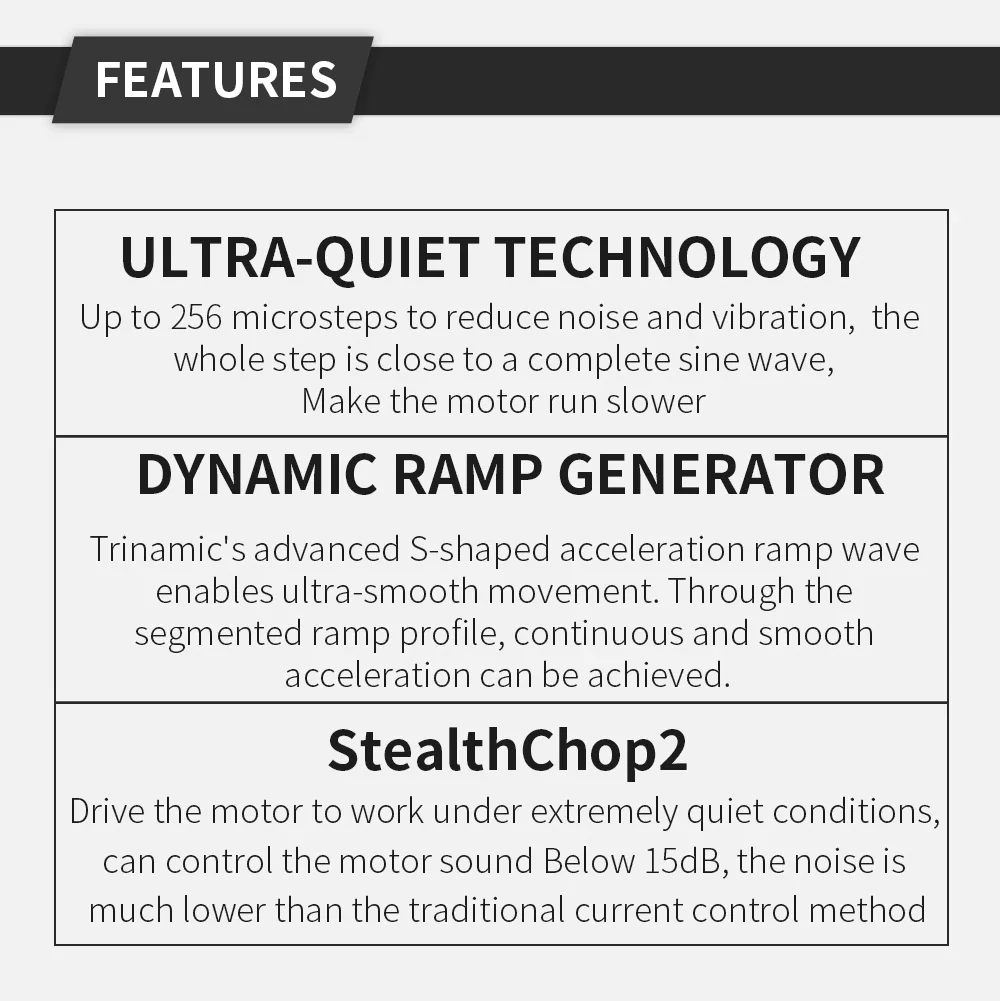

Features:

ULTRA-QUIET TECHNOLOGY

Up to 256 microsteps to reduce noise and vibration, the whole step is close to a complete sine wave.

DYNAMIC RAMP GENERATOR

Trinamic's advanced S-shaped acceleration ramp wave enables ultra-smooth movement. Through the segmented ramp profile, continuous and smooth acceleration can be achieved.

STEALTHCHOP-2

Drive the motor to work under extremely quiet conditions, it can control the motor sound Below 15dB, the noise is much lower than the traditional current control method.

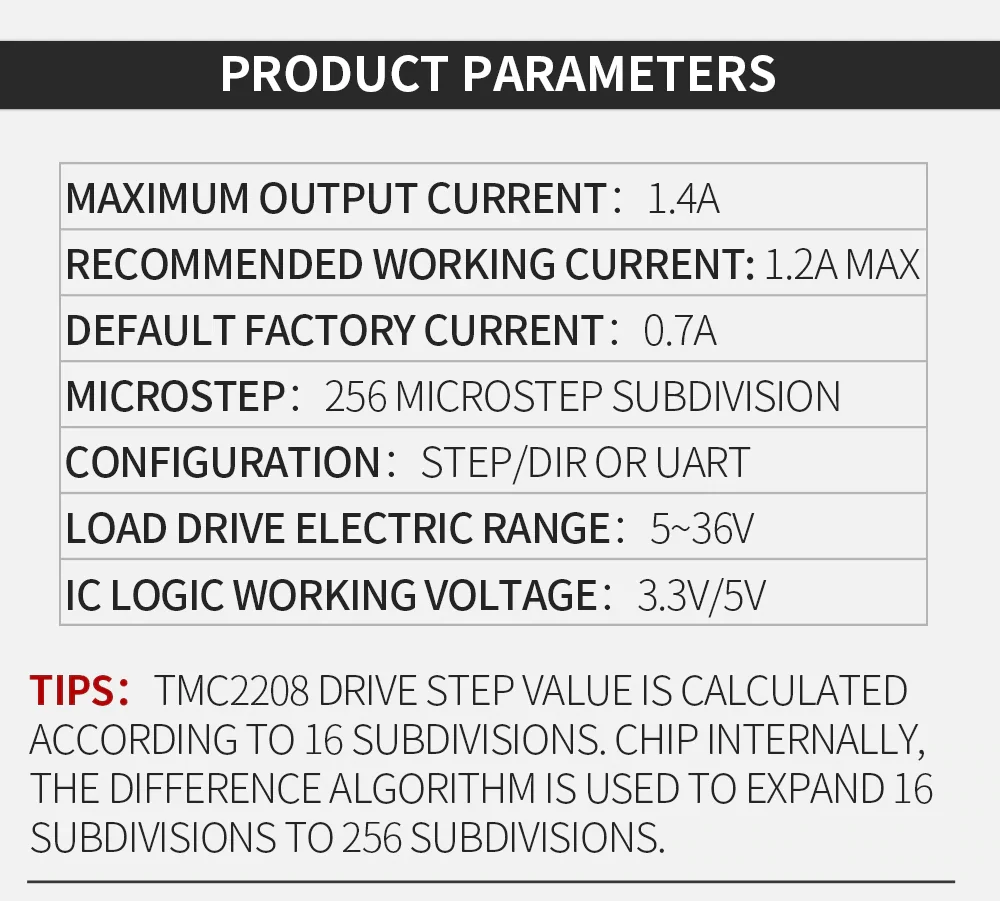

Specifications:

Input Voltage range: 5V-36V
Maximum current: 1.4A
Works with 3.3V and 5V signals
Supports up to 1/256 microstep

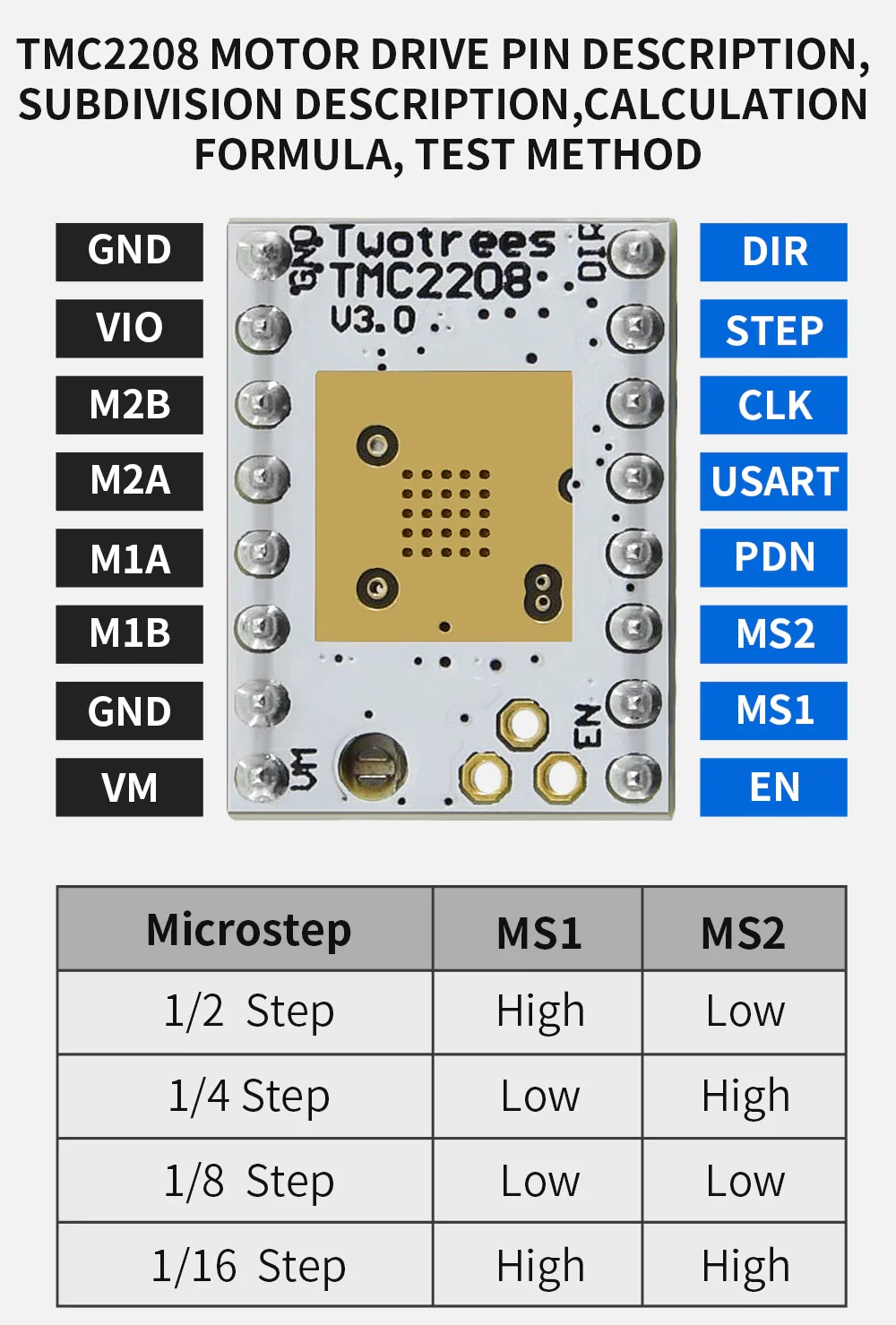

Supported configuration via CFG pins or UART
Has StealthChop technology for quieter stepper motors
Security built-in for high temperatures, high currents, low voltage, and short circuit
Comes with heatsink for better cooling



Package Includes:

1 x TMC2208 V3.0 Driver Module

1 x Aluminium Heatsink
