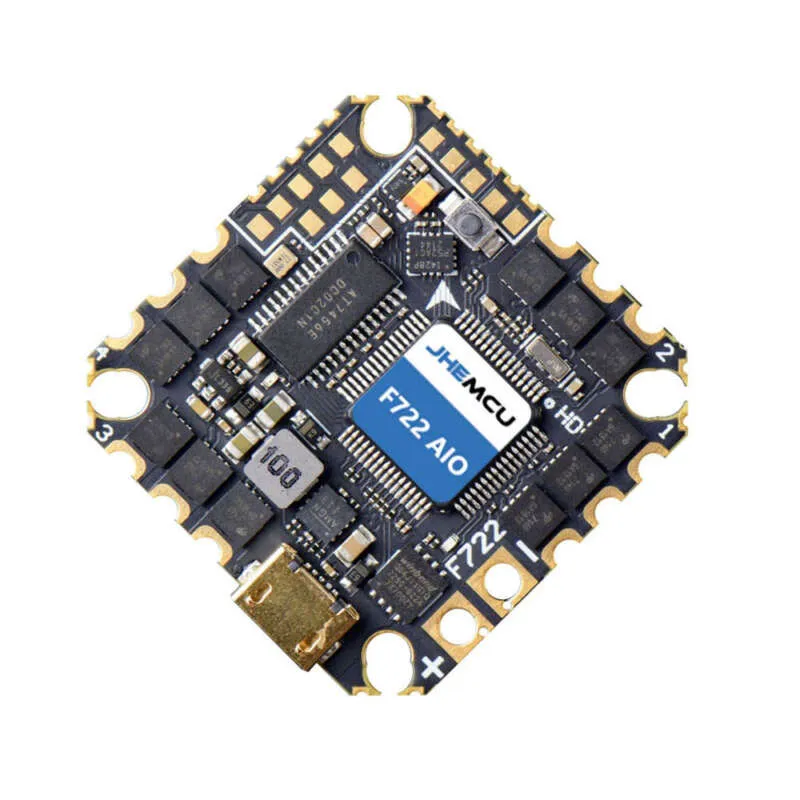

JHEMCU GHF722AIOHD 40A AIO F722 FPV Flight Controller Baro OSD BlackBox 4in1 ESC 2S-6S

The JHEMCU GHF722AIOHD is a flagship-level AIO board that combines a powerful Flight Controller (FC) and a robust 4-in-1 Electronic Speed Controller (ESC) onto a single printed circuit board (PCB). It's engineered for builders who want a clean, lightweight, and powerful setup for their 5-inch or larger freestyle, racing, or cinematic drones. Its key features cater to pilots using digital HD systems that require a dedicated power input and clean video.

Specifications

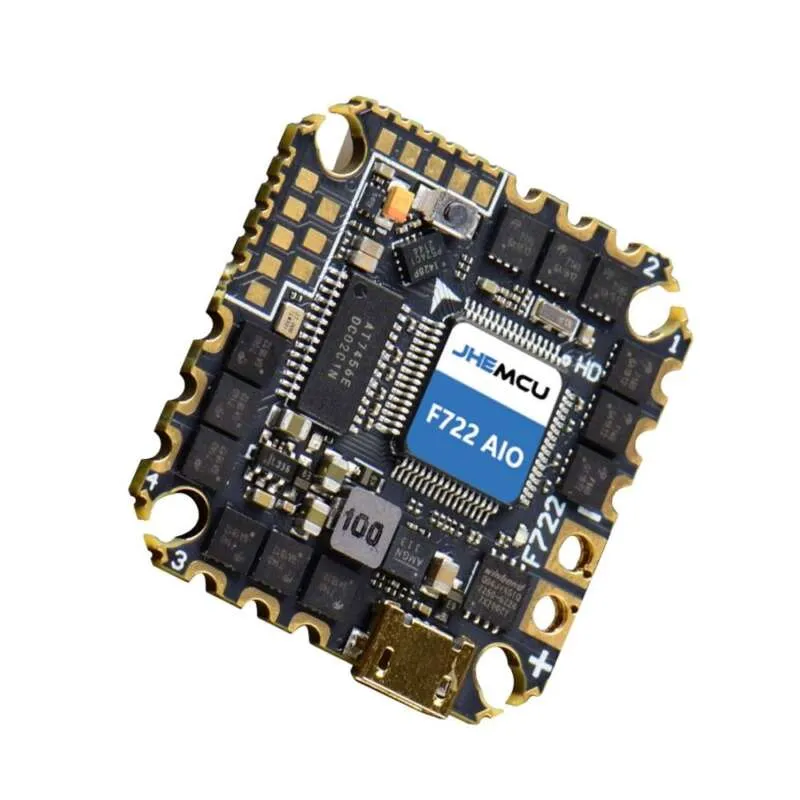

1. Flight Controller (FC) - The "Brain"

• Processor: STM32F722
  • This is a high-performance 32-bit ARM Cortex-M7 microcontroller.
  • It runs at 216 MHz, providing immense processing power for complex flight calculations.
  • Benefit: Allows for very high gyro sampling rates (up to 32kHz with appropriate firmware and setup), resulting in smoother flight, better noise filtering, and more responsive handling. It can easily handle advanced features and future firmware updates.
• Gyro/Accelerometer: ICM-42688-P
  • A modern, high-performance Inertial Measurement Unit (IMU).
  • It supports high-frequency sampling and has good vibration resistance.
  • Benefit: Provides the clean, accurate data the flight controller needs to keep the drone stable.

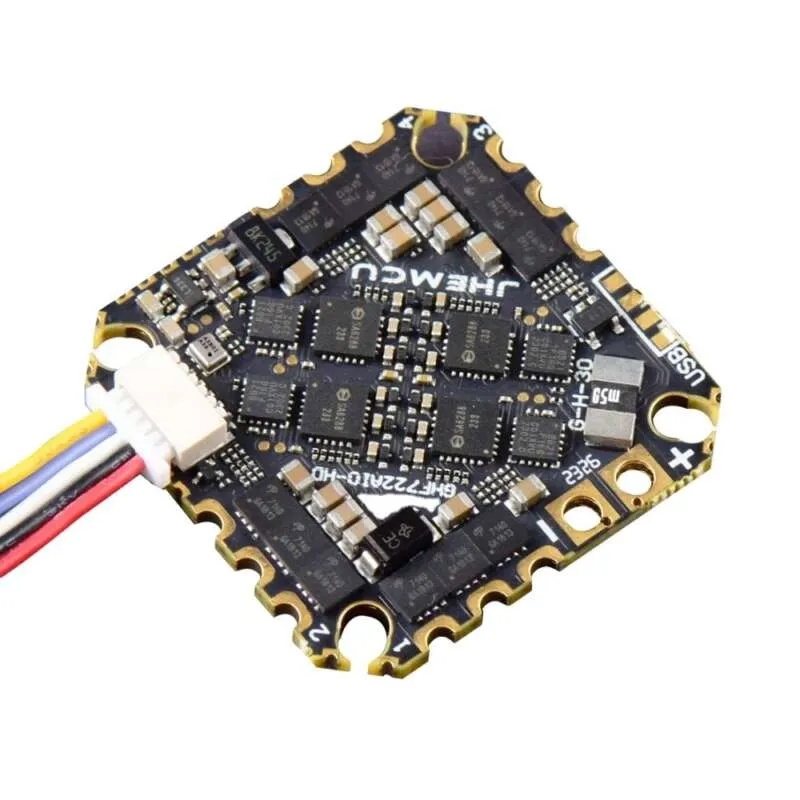

2. 4-in-1 ESC - The "Muscle"

• Current Rating: 40A Continuous / 55A Burst
  • This is a robust rating suitable for most 5" and 6" propeller setups using motors that draw up to ~45A in bursts.
  • Benefit: Provides ample headroom for aggressive flying, preventing the ESCs from overheating and failing.
• Voltage Range: 2-6S Lipo
  • Supports a wide range of battery configurations, from small 2S setups to powerful 6S packs (approx. 8V to 25.2V).
  • Benefit: Versatility for different drone sizes and performance requirements.
• Firmware: Typically ships with BLHeli_32 firmware.
  • BLHeli_32 is a premium ESC firmware known for its smooth operation, excellent performance, and user-friendly configuration suite (BLHeli_32 Configurator).
  • Benefit: Features like RPM filtering, advanced motor timing control, and robust telemetry are standard.

3. Key Integrated Features

• Barometer (Baro)
  • A sensor that measures atmospheric pressure to determine altitude.
  • Benefit: Essential for flight modes that require altitude hold, such as GPS Rescue Mode or "Angle" mode in certain configurations.
• On-Screen Display (OSD)
  • Overlays crucial information directly onto your FPV video feed.
  • Benefit: You can see real-time data like battery voltage, current draw, RSSI (signal strength), flight mode, and armed status without looking away from your goggles.
• BlackBox Logging
  • The F722 chip has ample memory for recording high-frequency flight data to an onboard MicroSD card slot.
  • Benefit: Invaluable for troubleshooting tuning issues, analyzing crashes, and fine-tuning your drone's performance by reviewing gyro, motor, and PID data.
• Dedicated HD FPV System Support
  • This is a critical feature for the "HD" in its name. It includes a dedicated 9V/2A BEC (Battery Eliminator Circuit) specifically for powering DJI Air Units, Caddx Vista, or Walksnail VRX modules.
  • Benefit: Provides clean, stable power to your expensive digital video transmitter, preventing brownouts and ensuring a reliable video link. It also integrates seamlessly with the OSD.

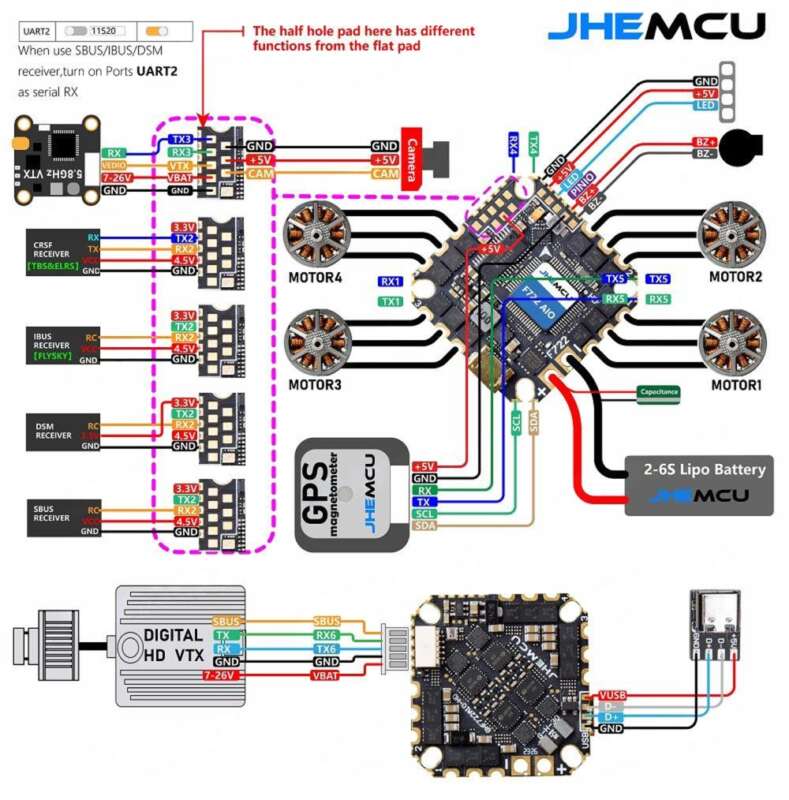

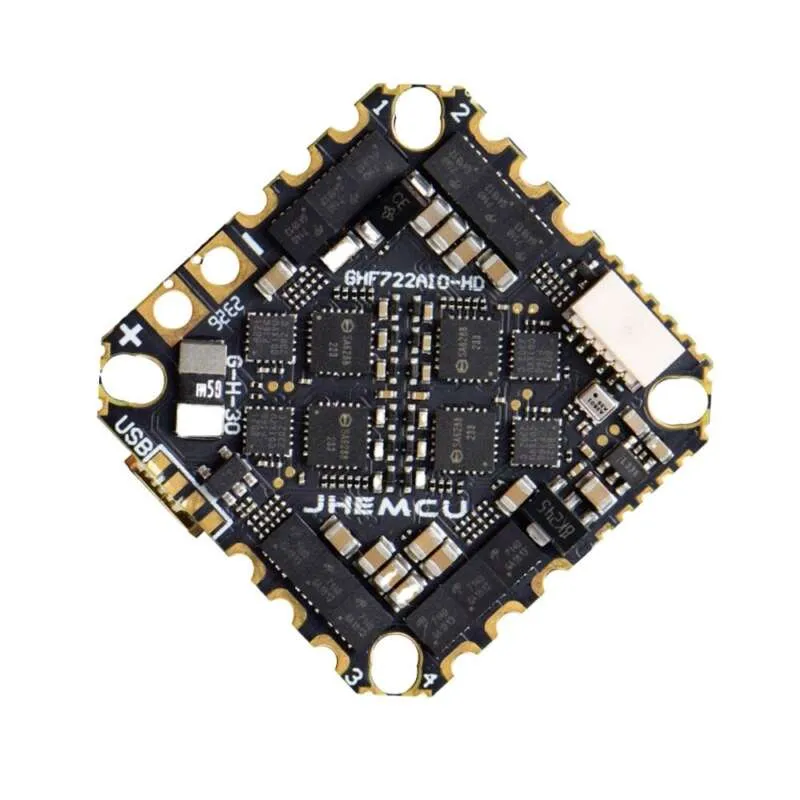

• Connectivity and Pads:
  • DJI / HD-F Port: A dedicated plug for connecting DJI or Walksnail systems for both power and digital OSD data.
  • Multiple UARTs: Plenty of serial ports for connecting GPS, Crossfire/ELRS receivers, SmartAudio/Tramp for analog VTX control, etc.
  • SBUS/FPV Cam Pads: For your receiver and analog FPV camera (if used in an HD system for a secondary feed).
  • LED Pad: For addressable LED strips.
  • Beeper Pad: For a backup buzzer.



Who Is This For?

• Freestyle and Racing Pilots building 5" or 6" drones who want a responsive, powerful, and clean setup.
• Digital HD FPV Users (DJI, Walksnail) who want a hassle-free integration.
• Pilots looking for a "premium" build without the complexity of a separate FC and ESC stack.
• Enthusiasts who tune their quads and will benefit from the powerful BlackBox logging capabilities.

The JHEMCU GHF722AIOHD 40A is a compelling, high-performance All-In-One flight controller that hits a sweet spot in the market. It packages a powerful F7 flight controller, robust 40A BLHeli_32 ESCs, and essential features like a Baro and BlackBox into a single, well-thought-out unit. Its standout feature is the seamless integration and dedicated power supply for modern digital HD FPV systems, making it an excellent choice for anyone building a serious digital HD drone. While the risk of a single point of failure exists with any AIO, the overall quality, performance, and feature set make it a highly recommended component for an advanced FPV build.

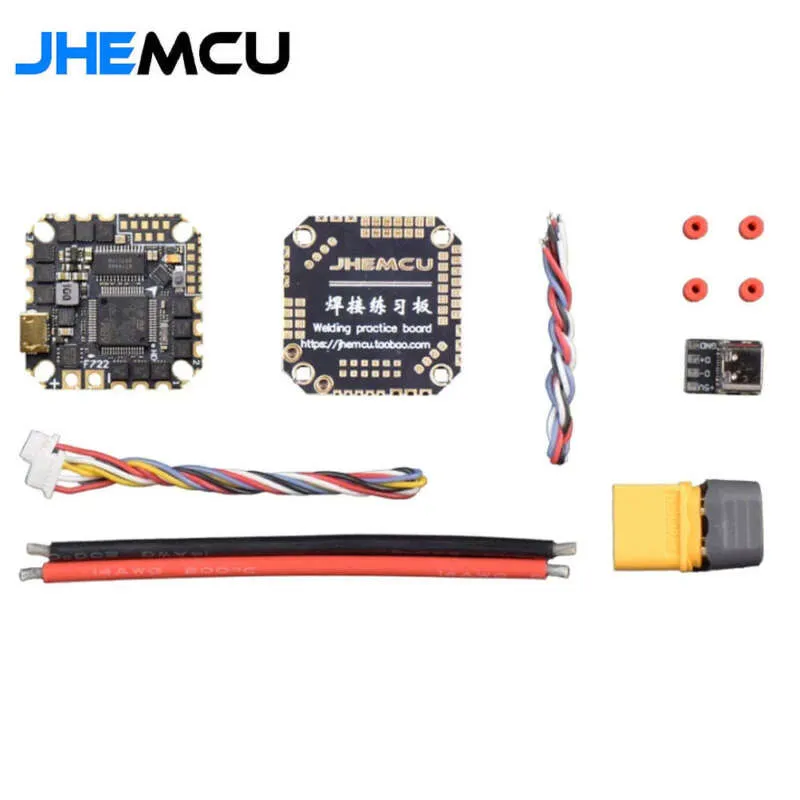

Package Includes

1 x JHEMCU GHF722AIOHD 40A AIO F722 FPV Flight Controller Baro OSD BlackBox 4in1 ESC 2S-6S
