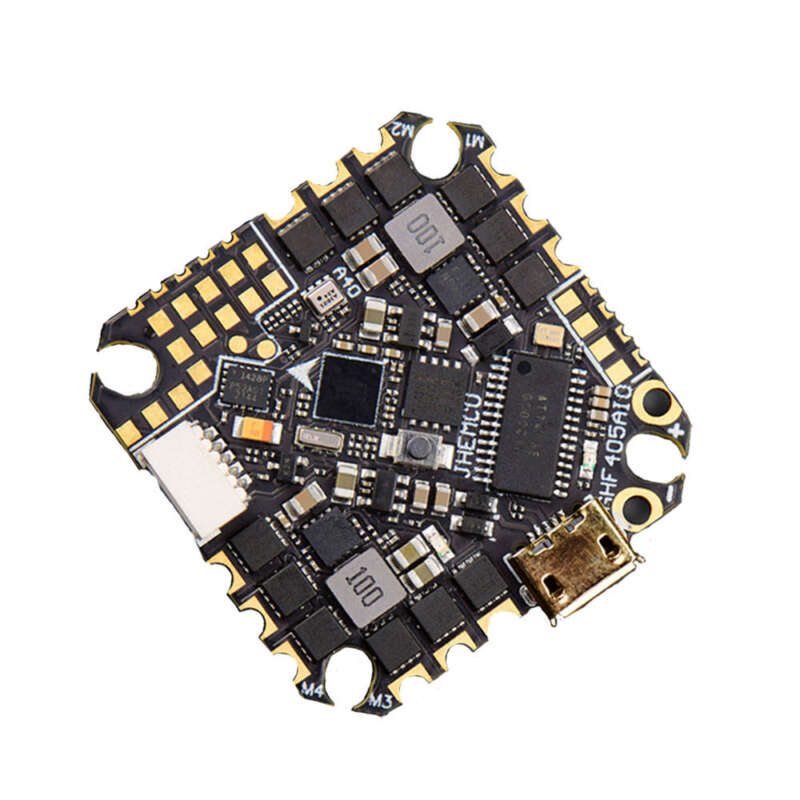

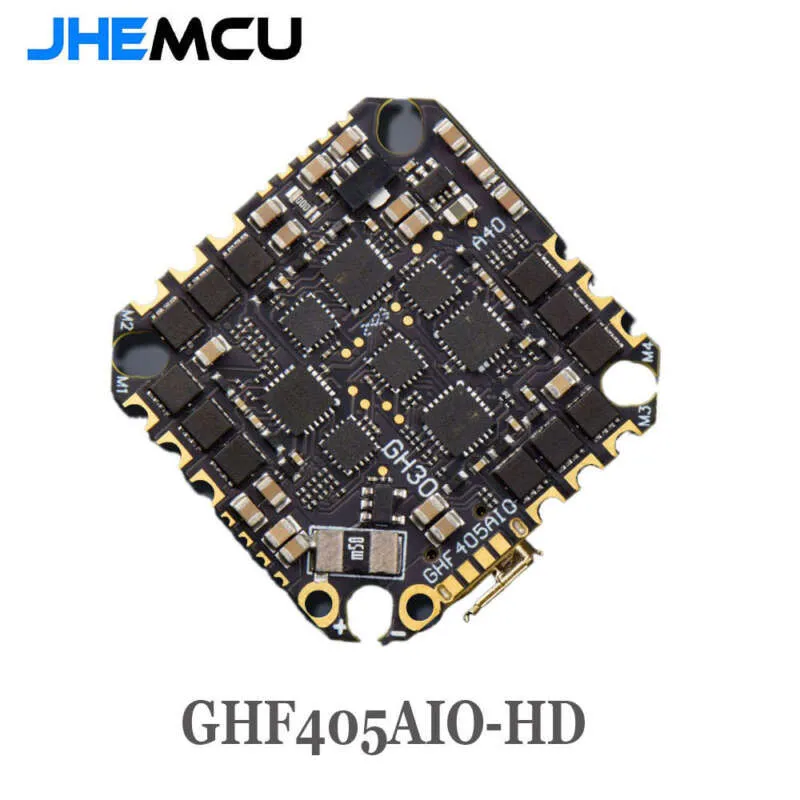

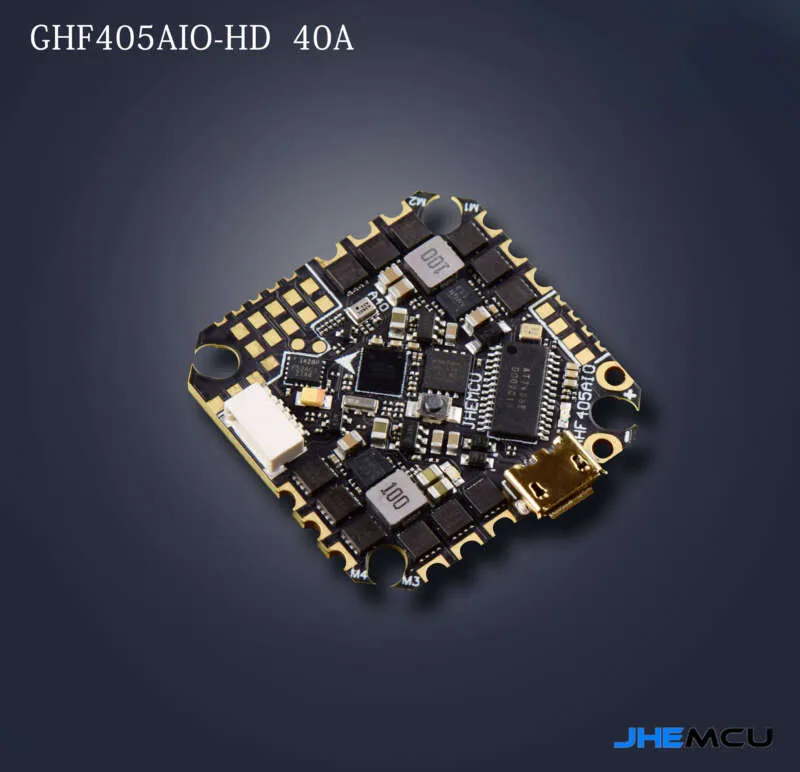

The GHF405AIO-HD is an All-In-One (AIO) Flight Controller designed for FPV (First-Person View) drones, specifically targeting the growing market of digital HD systems. It integrates a flight controller (the brain), an Electronic Speed Controller (ESC - the muscle), and a Power Distribution Board (PDB) onto a single, compact circuit board.
The "HD" in its name signifies its primary design feature: native support for HD digital FPV systems like DJI FPV, Walksnail Avatar, and HDZero, which require a direct connection to the flight controller for their On-Screen Display (OSD).
Detailed Component Breakdown
- Flight Controller (FC) - The Brain
- Microprocessor: STM32F405. This runs the flight control firmware, typically Betaflight, which is the industry standard. The F405 is known for its excellent performance, handling complex calculations for stable flight, acrobatics, and filtering with ease.
- Gyro/Accelerometer: An Inertial Measurement Unit (IMU) that detects the drone's orientation, rotation, and acceleration. A common gyro on these boards is the BMI270, which is known for good performance and resistance to vibration-induced noise (a phenomenon called "gyro noise").
- On-Screen Display (OSD): A dedicated chip (like the MAX7456) that allows you to overlay crucial information directly onto your FPV video feed. This includes:
- Battery Voltage
- Current Draw
- Flight Time
- RSSI (Signal Strength)
- Armed/Disarmed Status
- Artificial Horizon

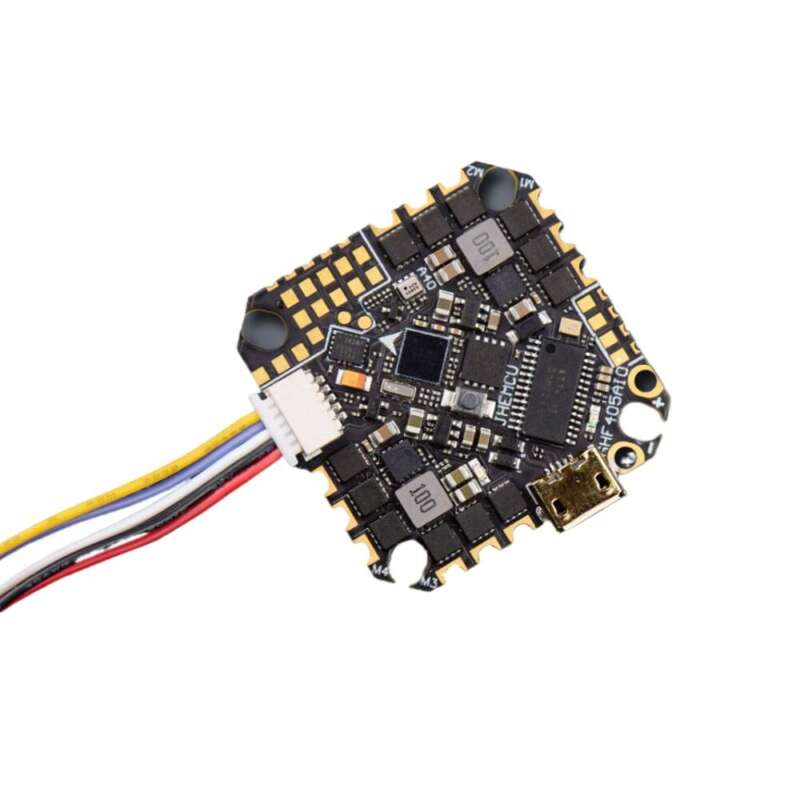

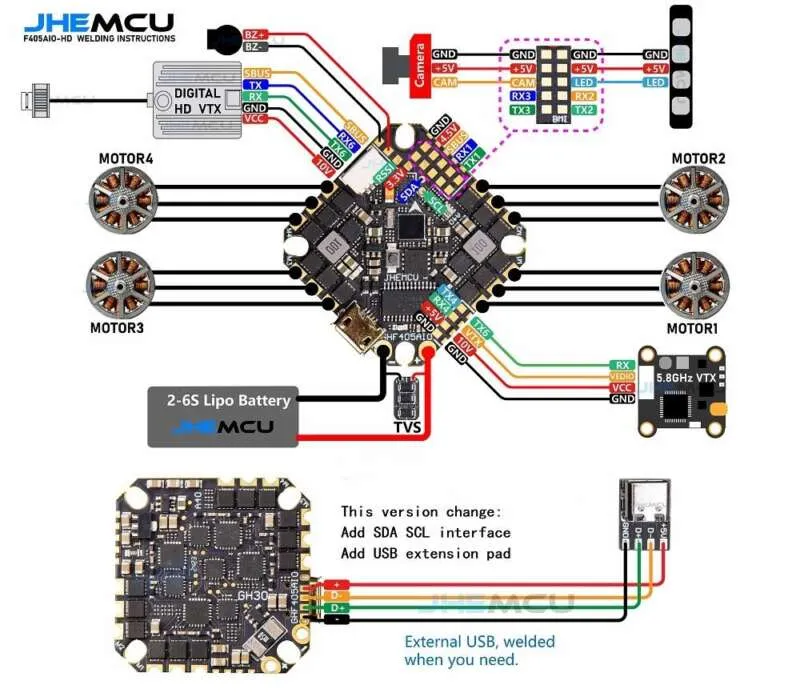

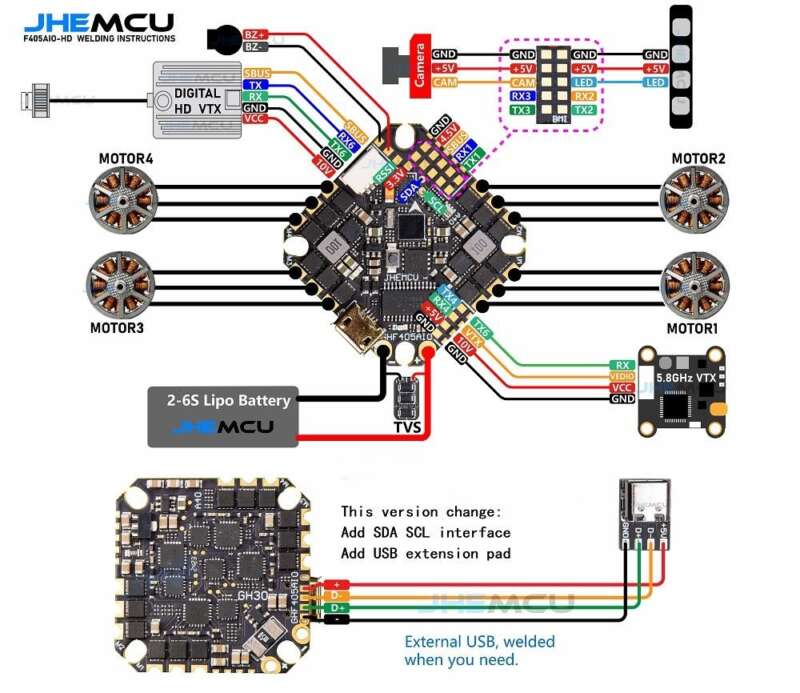

- HD System Integration: This is the key "HD" feature. It has a dedicated connector (usually a 5-pin or 6-pin JST GH port) that provides a direct, solder-free connection for the Air Unit/Video Transmitter (VTX) of DJI, Walksnail, or HDZero systems. This connection handles:
- Video Signal (TX): Sends the OSD data from the FC to the Air Unit.
- Smart Audio/Tramp: Allows you to control the VTX's power, channel, and pit mode through Betaflight via your radio transmitter.
- Power: Provides the correct voltage (e.g., 9V or 10V) to power the Air Unit.
- 4-in-1 ESC - The Muscle
- Rating: 40A Continuous, 50A+ Burst per motor. This is suitable for powerful 5-inch and 6-inch freestyle and racing drones using motors that typically draw up to 35-40A under heavy load.
- Voltage Range: 2-6S. It can handle everything from small 2S beginner drones to high-performance 6S setups.
- Protocols: Supports a wide range of ESC communication protocols, with Dshot600 being the best. Dshot is digital, faster, and more reliable than analog protocols (Oneshot, Multishot). This results in smoother motor control and better performance.
- Dshot150, Dshot300, Dshot600
- Oneshot42, Oneshot125
- Multishot
- MOSFETs: Uses high-quality power transistors to switch the motor current rapidly. The metal case helps dissipate the heat generated by these MOSFETs.
- Additional Features and Connectors
- Barometer: A BMP280 sensor for measuring atmospheric pressure, allowing for an altitude hold mode (not commonly used in acro flying but available).
- Blackbox Logging: Ample storage (typically 16MB or more) to record flight data. This is crucial for tuning your drone's PIDs and filters to achieve the perfect flight feel.
- Multiple UARTs: Serial ports for connecting various peripherals like GPS, Radio Receivers (RX), Telemetry, and LED strips.
BEC (Voltage Regulators): Provides stable 5V and 9V/10V power for other components like the receiver, FPV camera, and HD Air Unit.
Key Specifications at a Glance
| Feature |
Specification |
| MCU |
STM32F405 |
| Gyro |
BMI270 (or equivalent) |
| ESC Current |
40A Continuous per motor |
| Input Voltage |
2-6S LiPo (7.4V - 22.2V) |
| ESC Protocol |
Dshot600 (and lower) |
| OSD Chip |
MAX7456 |
| HD System Support |
DJI, Walksnail, HDZero (via dedicated plug) |
| Blackbox Storage |
16MB (or more) |

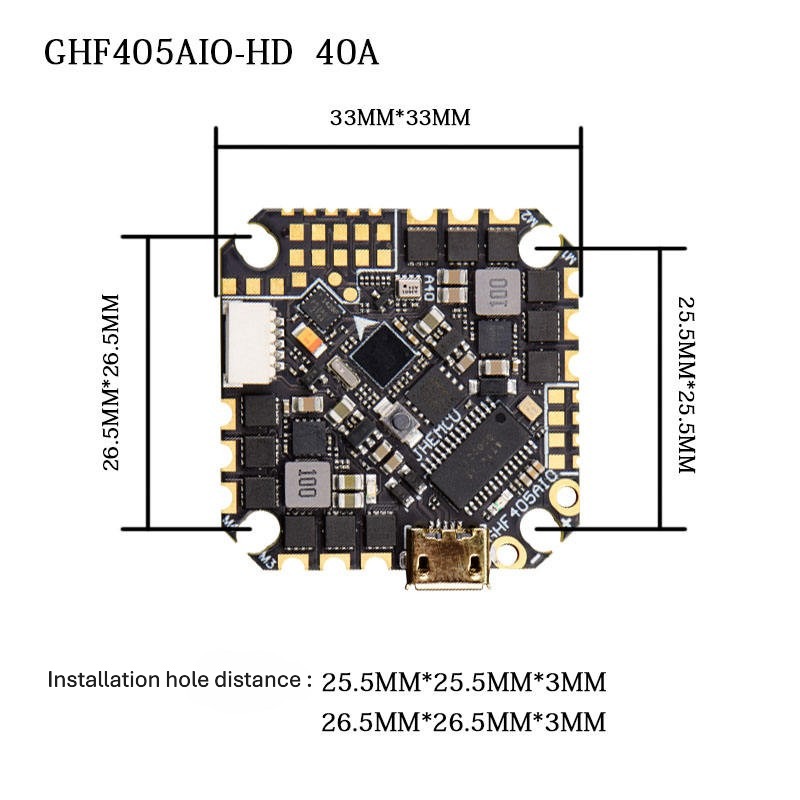

| Mounting Pattern |
30.5x30.5mm (with 25.5x25.5mm adapter) |
Who is this For?
The GHF405AIO-HD is an excellent choice for:
- Intermediate to Advanced FPV Pilots building 5-inch or 6-inch freestyle or racing drones.
- Anyone using a Digital HD FPV System (DJI, Walksnail, HDZero) as it offers a plug-and-play experience.
- Builders looking for a clean, simple build with minimal wiring.
The GHF405AIO-HD represents a mature, feature-packed, and highly convenient solution for modern digital FPV drone builds. Its integration of a robust F405 flight controller with a capable 40A 4-in-1 ESC, all while being perfectly tailored for HD systems with its dedicated connector and metal heatsink case, makes it a compelling and popular choice in the FPV market.
